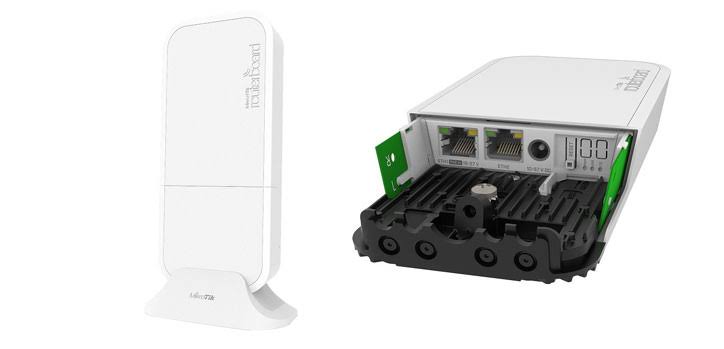

A small package with a huge ambition – the wAP ac R is an extremely
cost-effective dual-band (2.4 / 5 GHz) home access point based on our
popular weatherproof wAP form factor. Enjoy wireless experience anywhere
– indoors or outdoors! wAP ac LTE is designed to deliver strong and
reliable connection in almost any situation and weather conditions. It
can withstand temperatures from -30 C° to +60 C and can be easily
mounted on walls, ceilings or poles.
Don’t be fooled by the compact size – this device is powered by a
four core 716 MHz CPU and 128 MB RAM, capable of handling heavy loads.
Dual-chain 2.4 GHz and dual-chain 5GHz wireless for dual concurrent AP
coverage will solve most interference issues in a crowded environment.
For example, you can simultaneously use the 2.4 GHz channel for all your
household mobile devices and reserve the 5GHz channel for tasks that
are sensitive to packet loss – such as streaming high-quality videos.
It has two Gigabit Ethernet ports and miniPCIe slot for LTE modem of your choice (not included).
High performance, great value, astonishing durability, functional
and non-intrusive design – wAP ac LTE will meet most demands without
making sacrifices.
Specifications
| Details |
| Product code |
RBwAPGR-5HacD2HnD |
| Architecture |
ARM 32bit |
| CPU |
IPQ-4018 |
| CPU core count |
4 |
| CPU nominal frequency |
716 MHz |
| License level |
4 |
| Size of RAM |
128 MB |
| Storage size |
16 MB |
| Storage type |
FLASH |
| Tested ambient temperature |
-30°C to 60°C |
| Suggested price |
$129.00 |
Powering
| Details |
| PoE in |
802.3af/at |
| PoE in input Voltage |
18-57 V |
| Number of DC inputs |
2 (DC jack, PoE-IN) |
| DC jack input Voltage |
10-57 V |
| Max power consumption |
11 W |
| Max power consumption without attachments |
10 W |
Wireless
| Details |
| AC speed |
AC1200 |
| Wireless 2.4 GHz Max data rate |
300 Mbit/s |
| Wireless 2.4 GHz number of chains |
2 |
| Wireless 2.4 GHz standards |
802.11b/g/n |
| Antenna gain dBi for 2.4 GHz |
2.5 |
| Wireless 2.4 GHz chip model |
IPQ-4018 |
| Wireless 2.4 GHz generation |
Wi-Fi 4 |
| Wireless 5 GHz Max data rate |
867 Mbit/s |
| Wireless 5 GHz number of chains |
2 |
| Wireless 5 GHz standards |
802.11a/n/ac |
| Antenna gain dBi for 5 GHz |
2.5 |
| Wireless 5 GHz chip model |
IPQ-4018 |
| Wireless 5 GHz generation |
Wi-Fi 5 |
Ethernet
| Details |
| 10/100/1000 Ethernet ports |
2 |
Peripherals
| Details |
| Number of SIM slots |
1 Modem (Micro SIM) |
| MiniPCI-e slots |
1 |
Other
| Details |
| PCB temperature monitor |
Yes |
| Voltage Monitor |
Yes |
Certification & Approvals
| Details |
| Certification |
CE/RED, FCC, IC, EAC, ROHS |
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|
| 1MBit/s | 22 | -100 |
| 11MBit/s | 22 | -94 |
| 6MBit/s | 23 | -95 |
| 54MBit/s | 19 | -78 |
| MCS0 | 23 | -95 |
| MCS7 | 18 | -73 |
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|
| 6MBit/s | 24 | -95 |
| 54MBit/s | 20 | -78 |
| MCS0 | 24 | -95 |
| MCS7 | 19 | -73 |
| MCS9 | 17 | -68 |
Included parts
