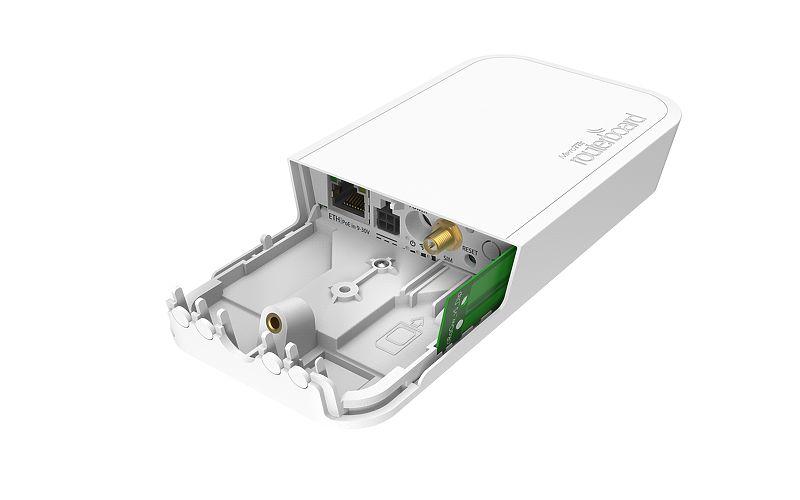

wAP LoRa8 – an out-of-the-box solution to use LoRaWAN gateway. This
kit contains a pre-installed UDP packet forwarder to any public or
private LoRa servers and an outdoor weatherproof wireless access point
with 2.4 GHz WLAN interface and Ethernet port that could be used as a
backend.
This particular wAP form-factor has been tested in many other
MikroTik products – it can deliver excellent and stable performance in
almost any weather conditions.
You can use the optional internal 2 dBi antenna or attach an
external antenna. For extra network coverage we suggest adding MikroTik
LoRa Antenna kit.
wAP LoRa8 kit supports 863-870 MHz frequency, used in European Union, Russia, India etc.
Functional and non-intrusive design, astonishing durability and
great value – that is the wAP LoRa8 kit, the long-awaited LoRa solution
for LoRa enthusiasts of any level.
Specifications
| Details |
| Product code |
RBwAPR-2nD&R11e-LoRa8 |
| Architecture |
MIPSBE |
| CPU |
QCA9531 |
| CPU core count |
1 |
| CPU nominal frequency |
650 MHz |
| License level |
4 |
| Size of RAM |
64 MB |
| Storage size |
16 MB |
| Storage type |
FLASH |
| Tested ambient temperature |
-40°C to 60°C |
| Suggested price |
$169.00 |
Powering
| Details |
| PoE in |
Passive PoE |
| PoE in input Voltage |
9-30 V |
| Number of DC inputs |
3 (DC jack, PoE-IN, Automotive) |
| DC jack input Voltage |
9-30 V |
| Automotive input Voltage |
9-30 V |
| Max power consumption |
7 W |
Wireless
| Details |
| Wireless 2.4 GHz Max data rate |
300 Mbit/s |
| Wireless 2.4 GHz number of chains |
2 |
| Wireless 2.4 GHz standards |
802.11b/g/n |
| Antenna gain dBi for 2.4 GHz |
2 |
| Wireless 2.4 GHz chip model |
QCA9531 |
| Wireless 2.4 GHz generation |
Wi-Fi 4 |
Ethernet
| Details |
| 10/100 Ethernet ports |
1 |
Peripherals
| Details |
| Number of SIM slots |
1 Modem (Mini SIM) |
| MiniPCI-e slots |
1 |
Other
| Details |
| PCB temperature monitor |
Yes |
| Voltage Monitor |
Yes |
Certification & Approvals
| Details |
| Certification |
CE/RED, FCC, IC, EAC, ROHS |
Included parts
