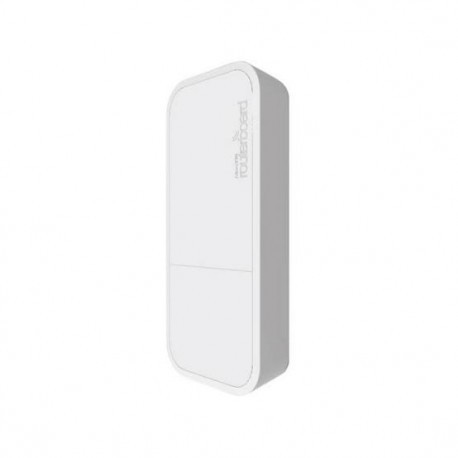

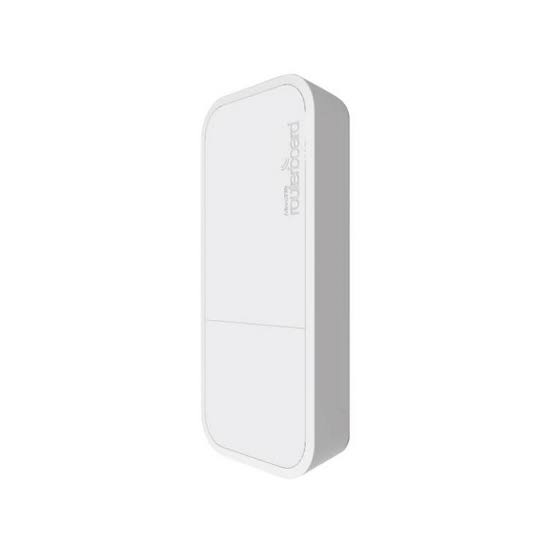

The wAP ac is a small weatherproof wireless access point for your
mobile devices, perfect for installation outside your house, in the
garden, on your porch or anywhere else where you need wireless access
from your phone or computer.
The device has one Gigabit Ethernet port, it supports
802.11a/b/g/n/ac wireless protocols and can work at both the 2.4GHz and
5GHz frequencies simultaneously. It looks unobtrusive and sleek.
The wAP ac is weatherproof and can be fixed to any external wall
from the inside of the case - so that it is securely attached to it’s
mounting location.
We have two versions available.
- RBwAPG-5HacT2HnD (International) supports 2412-2484MHz and
5150MHz-5875MHz range (Specific frequency range can be limited by
country regulations).
- RBwAPG-5HacT2HnD-US (USA) is factory locked for 2412-2462MHz,
5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
Specifications
| Details |
| Product code |
RBwAPG-5HacT2HnD |
| Architecture |
MIPSBE |
| CPU |
QCA9556 |
| CPU core count |
1 |
| CPU nominal frequency |
720 MHz |
| Dimensions |
185 x 85 x 30 mm |
| License level |
4 |
| Operating System |
RouterOS |
| Size of RAM |
64 MB |
| Storage size |
16 MB |
| Storage type |
FLASH |
| Tested ambient temperature |
-40°C to 70°C |
| Suggested price |
$89.00 |
Powering
| Details |
| PoE in |
802.3af/at |
| PoE in input Voltage |
11-57 V |
| Number of DC inputs |
1 (PoE-IN) |
| Max power consumption |
12 W |
Wireless
| Details |
| AC speed |
AC1600 |
| Wireless 2.4 GHz Max data rate |
300 Mbit/s |
| Wireless 2.4 GHz number of chains |
2 |
| Wireless 2.4 GHz standards |
802.11b/g/n |
| Antenna gain dBi for 2.4 GHz |
2 |
| Wireless 2.4 GHz chip model |
QCA9556 |
| Wireless 2.4 GHz generation |
Wi-Fi 4 |
| Wireless 5 GHz Max data rate |
1300 Mbit/s |
| Wireless 5 GHz number of chains |
3 |
| Wireless 5 GHz standards |
802.11a/n/ac |
| Antenna gain dBi for 5 GHz |
2 |
| Wireless 5 GHz chip model |
QCA9880 |
| Wireless 5 GHz generation |
Wi-Fi 5 |
Ethernet
| Details |
| 10/100/1000 Ethernet ports |
1 |
Other
| Details |
| PCB temperature monitor |
Yes |
| Voltage Monitor |
Yes |
Certification & Approvals
| Details |
| Certification |
CE/RED, FCC, IC, EAC, ROHS |
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|
| 1MBit/s | 25 | -95 |
| 11MBit/s | 25 | -90 |
| 6MBit/s | 25 | -95 |
| 54MBit/s | 23 | -80 |
| MCS0 | 25 | -95 |
| MCS7 | 22 | -74 |
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|
| 6MBit/s | 25 | -96 |
| 54MBit/s | 25 | -81 |
| MCS0 | 25 | -96 |
| MCS7 | 24 | -77 |
| MCS9 | 23 | -72 |
Included parts
