The wAP ac is a small weatherproof wireless access point for your
mobile devices, perfect for installation outside your house, in the
garden, on your porch, or anywhere else where you need a capable
wireless connection. The new revision features 2x Gigabit Ethernet
ports, enhanced wireless antenna performance,
more RAM, and a powerful quad-core CPU!
Strong dual-chain dual-band 2.4/5 GHz wireless for concurrent
coverage will solve most interference issues in a crowded environment.
This is a must-have these days! You can use the 2.4 GHz channel for
older devices and the 5 GHz channel for everything else since this
frequency is less cluttered.
The wAP ac is weatherproof and can be fixed to any external wall
from the inside of the case – for extra security and less visible
attachments. The bottom part can also be secured with a special
anti-vandal screw, which can only be opened by the owner.

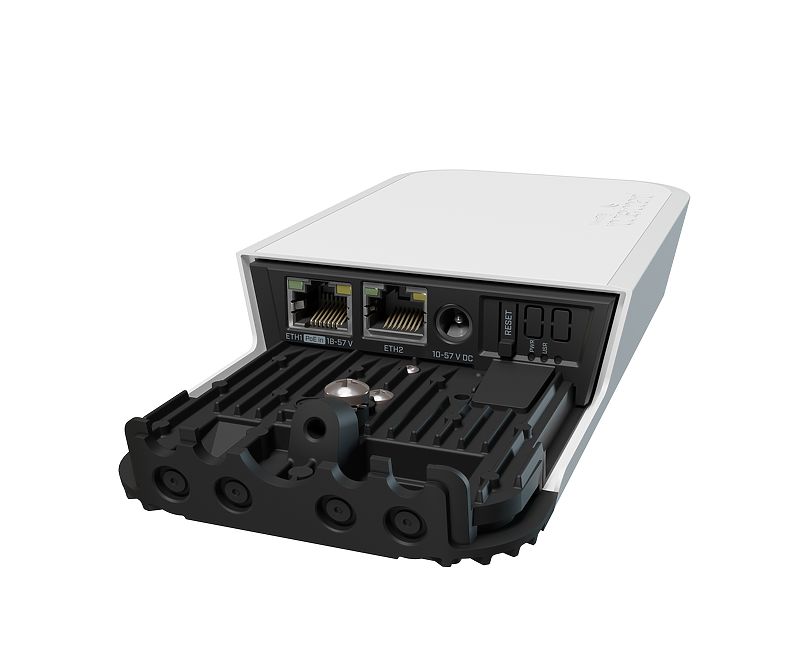

There is an opening in the back of the case, allowing you to run
the Ethernet cable directly behind the unit and through the wall. This
way the wAP ac attracts less attention and blends into any
environment.It looks unobtrusive and sleek, available in two colors -
black (RBwAPG-5HacD2HnD-BE) and white (RBwAPG-5HacD2HnD).
Specifications
| Details |
| Product code |
RBwAPG-5HacD2HnD |
| Architecture |
ARM 32bit |
| CPU |
IPQ-4018 |
| CPU core count |
4 |
| IPsec hardware acceleration |
Yes |
| Dimensions |
185 x 85 x 30 mm |
| RouterOS license |
4 |
| Operating System |
RouterOS |
| Size of RAM |
128 MB |
| Storage size |
16 MB |
| Storage type |
FLASH |
| MTBF |
Approximately 100'000 hours at 25C |
| Suggested price |
$89.00 |
Wireless capabilities
| Details |
| Wireless 2.4 GHz Max data rate |
300 Mbit/s |
| Wireless 2.4 GHz number of chains |
2 |
| Wireless 2.4 GHz standards |
802.11b/g/n |
| Antenna gain dBi for 2.4 GHz |
2.5 |
| Wireless 2.4 GHz chip model |
IPQ-4018 |
| Wireless 2.4 GHz generation |
Wi-Fi 4 |
| Wireless 5 GHz Max data rate |
867 Mbit/s |
| Wireless 5 GHz number of chains |
2 |
| Wireless 5 GHz standards |
802.11a/n/ac |
| Antenna gain dBi for 5 GHz |
2.5 |
| Wireless 5 GHz chip model |
IPQ-4018 |
| Wireless 5 GHz generation |
Wi-Fi 5 |
| AC speed |
AC1200 |
Ethernet
| Details |
| 10/100/1000 Ethernet ports |
2 |
Powering
| Details |
| PoE in |
802.3af/at |
| PoE in input Voltage |
18-57 V |
| Number of DC inputs |
2 (DC jack, PoE-IN) |
| DC jack input Voltage |
10-57 V |
| Max power consumption |
10 W |
| Max power consumption without attachments |
9 W |
| FAN count |
Passive |
Certification & Approvals
| Details |
| Certification |
CE, FCC, IC, EAC, ROHS |
Other
| Details |
| PCB temperature monitor |
Yes |
| Voltage Monitor |
Yes |
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|
| 1MBit/s | 25 | -100 |
| 11MBit/s | 25 | -94 |
| 6MBit/s | 25 | -96 |
| 54MBit/s | 19 | -78 |
| MCS0 | 25 | -96 |
| MCS7 | 18 | -73 |
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|
| 6MBit/s | 24 | -96 |
| 54MBit/s | 20 | -80 |
| MCS0 | 24 | -96 |
| MCS7 | 19 | -75 |
| MCS9 | 17 | -70 |
