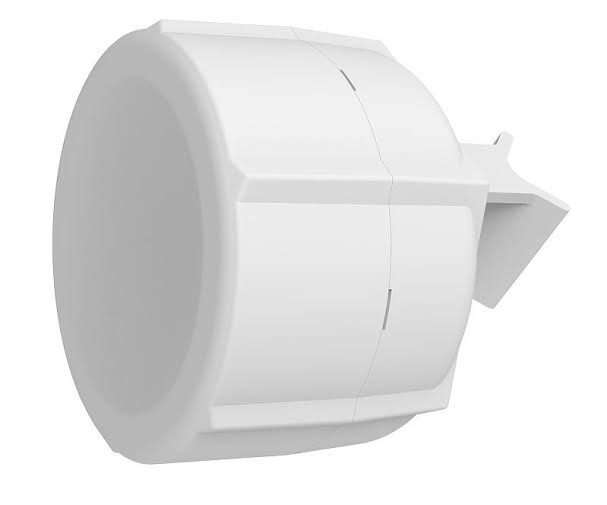

The SXT 4G kit (product code RBSXTR&R11e-4G) is a device for
remote locations that are within cellular network coverage. However, due
to it’s professional LTE chip design and high gain antenna, it can
provide connectivity for your building even where cell phones can’t.
The unit is equipped with two Ethernet ports (the second port has
PoE-out functionality), so you can use it to power up another device.
The unit includes a 24 V power supply, but can support full range of
12-57 V and 18-57 V with PoE-Out and is 802.3af/at compliant.
The device has a built in high quality 4G/LTE Category 4 modem
for speeds of up to 150 Mbit/s downlink and 50 Mbit/s uplink, as well as
two Micro SIM slots for backup link.
RBSXTR&R11e-4G includes LTE modem that supports LTE FDD bands
3 (1800MHz), 7 (2600MHz), 20 (800MHz) and 31 (450MHz), as well as LTE
TDD bands 41n (2500MHz), 42 (3500MHz) and 43 (3700MHz).
Specifications
| Details |
| Product code |
RBSXTR&R11e-4G |
| Architecture |
MIPSBE |
| CPU |
QCA9531 |
| CPU core count |
1 |
| CPU nominal frequency |
650 MHz |
| Dimensions |
140 x 140 x 103 mm |
| License level |
3 |
| Operating System |
RouterOS |
| Size of RAM |
64 MB |
| Storage size |
16 MB |
| Storage type |
FLASH |
| Tested ambient temperature |
-40°C to 60°C |
| Suggested price |
$139.00 |
Powering
| Details |
| PoE in |
802.3af/at |
| PoE in input Voltage |
12-57 V |
| PoE out |
Passive PoE up to 57V |
| PoE-out ports |
Ether2 |
| Number of DC inputs |
1 (PoE-IN) |
| Max out per port output (input > 30 V) |
400 mA |
| Max out per port output (input < 30 V) |
600 mA |
| Max total out (A) |
600 mA |
| Max power consumption |
19 W |
| Max power consumption without attachments |
6 W |
Mobile
| Details |
| LTE Category |
4 (150Mbps Downlink, 50Mbps Uplink) |
| LTE FDD bands |
3 (1800MHz) / 7 (2600MHz) / 20 (800MHz) / 31 (450MHz) |
| LTE TDD bands |
41n (2500MHz) / 42 (3500MHz) / 43 (3700MHz) |
| 2G bands |
2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz) |
| 3G bands |
1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz) |
Ethernet
| Details |
| 10/100 Ethernet ports |
2 |
Peripherals
| Details |
| Number of SIM slots |
2 Modem (Micro SIM) |
| MiniPCI-e slots |
1 |
Other
Certification & Approvals
| Details |
| Certification |
CE/RED, EAC, ROHS |
Included parts
