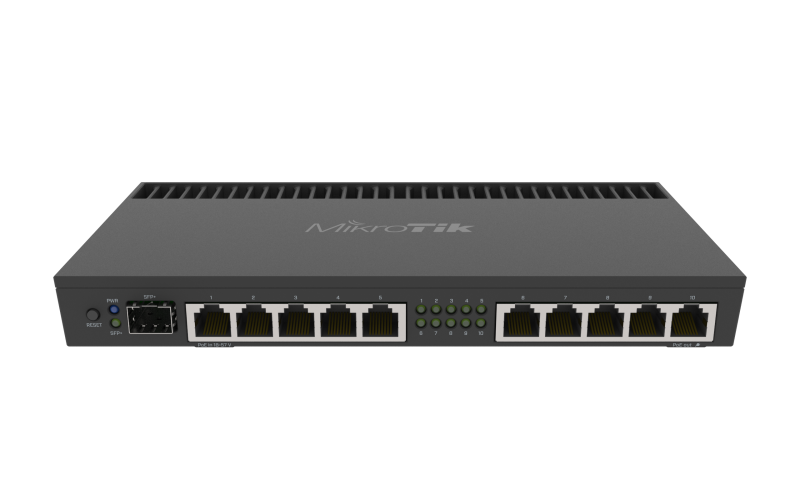

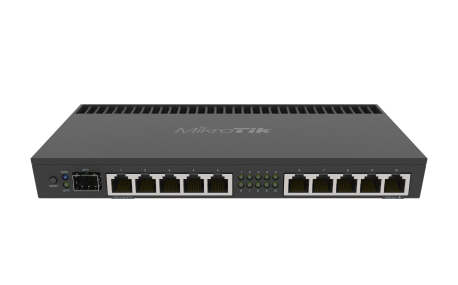

RB4011 series - amazingly powerful routers with ten Gigabit ports,
SFP+ 10Gbps interface and IPsec hardware acceleration for a great price!
The RB4011 uses a quad core Cortex A15 CPU, same as in our
carrier grade RB1100AHx4 unit. The unit is equipped with 1GB of RAM, can
provide PoE output on port #10 and comes with a compact and
professional looking solid metal enclosure in matte black.
RB4011iGS+RM (Ethernet model) includes two rackmount ears that will securely fasten the unit in a standard 1U rack space.
Note: The RB4011 does not support Passive DAC modules and SFP GPON modules.
Specifications
Details |
Product code |
RB4011iGS+RM |
Architecture |
ARM 32bit |
CPU |
AL21400 |
CPU core count |
4 |
CPU nominal frequency |
1400 MHz |
Dimensions |
228 x 120 x 30 mm |
License level |
5 |
Operating System |
RouterOS |
Size of RAM |
1 GB |
Storage size |
512 MB |
Storage type |
NAND |
Tested ambient temperature |
-40°C to 70°C |
Suggested price |
$199.00 |
Powering
Details |
PoE in |
Passive PoE |
PoE in input Voltage |
18-57 V |
PoE out |
Passive PoE up to 57V |
PoE-out ports |
Ether10 |
Number of DC inputs |
2 (DC jack, PoE-IN) |
DC jack input Voltage |
12-57 V |
Max out per port output (input > 30 V) |
400 mA |
Max out per port output (input < 30 V) |
600 mA |
Max total out (A) |
600 mA |
Max power consumption |
33 W |
Max power consumption without attachments |
18 W |
Ethernet
Details |
10/100/1000 Ethernet ports |
10 |
Fiber
Peripherals
Other
Details |
PCB temperature monitor |
Yes |
Voltage Monitor |
Yes |
Certification & Approvals
Details |
Certification |
CE/RED, EAC, ROHS |
Included parts
