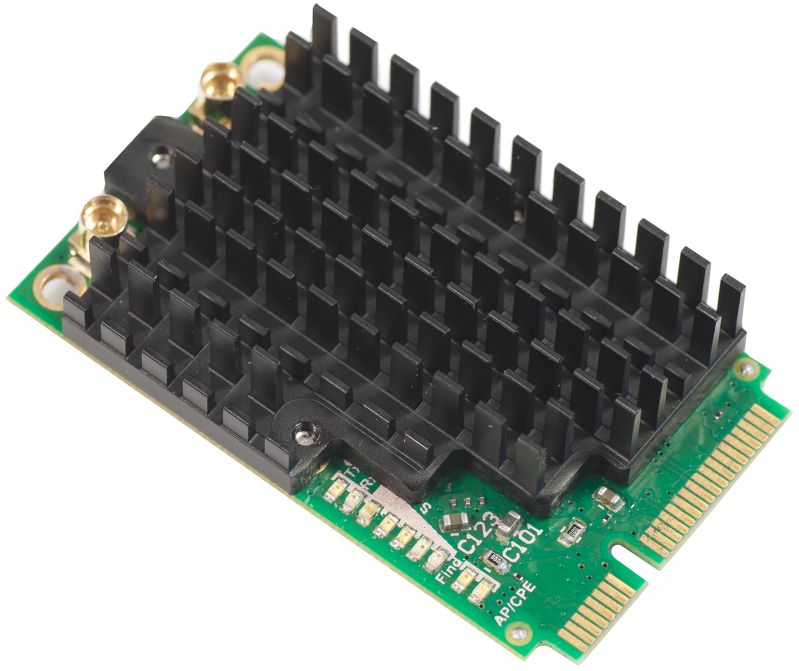

R11e-2HPnD is our new 802.11b/g/n Dual Chain high power miniPCI-e
card, operating in full 2192-2732 MHz frequency. Ideally suited for the
new RB912 series (Specific frequency range can be limited by country
regulations), RB800 or our new miniPCIe adapters - RB14e/RB14eU
Unit is equipped with two MMCX connectors
Product specifications
| Details |
| Product code |
R11e-2HPnD |
| Antenna header count |
2 |
| Can be used indoors |
Yes |
| Can be used outdoors |
Yes |
| Certification |
FCC, IC |
| Max power consumption |
5 W |
| Storage size |
4 KB |
| Storage type |
FLASH |
| Tested ambient temperature |
-40C to +65C |
| Wi-Fi generation |
Wi-Fi 4 |
| Wireless 2.4 GHz Max data rate |
300 Mbit/s |
| Wireless 2.4 GHz chip model |
AR9582 |
| Wireless 2.4 GHz generation |
Wi-Fi 4 |
| Wireless 2.4 GHz number of chains |
2 |
| Wireless 2.4 GHz standards |
802.11b/g/n |
| Wireless standards |
802.11b/g/n |
| Suggested price |
$39.00 |
|
|
|
|---|
|
|
|
|
| Wireless specifications| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|
| 1MBit/s | 29 | -100 | | 11MBit/s | 29 | -94 | | 6MBit/s | 30 | -96 | | 54MBit/s | 25 | -80 | | MCS0 | 30 | -96 | | MCS7 | 24 | -79 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
