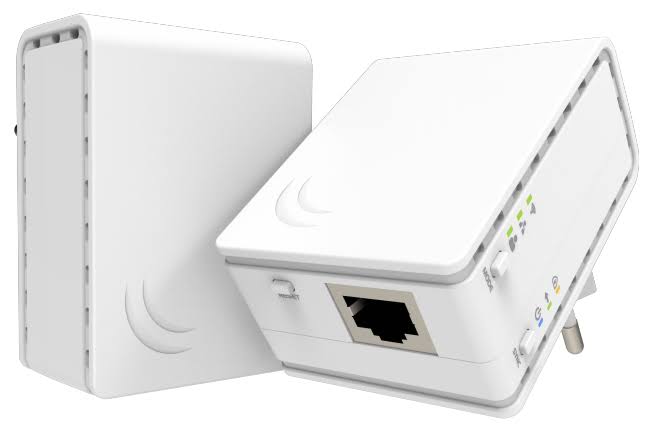

The PWR-Line AP is a small Wi-Fi access point, made as an accessory
to your existing network, for places, where your signal or your cable is
unable to reach. Unit comes with Type C power plug (commonly used in
Europe, South America & Asia).
Especially useful in homes with thick walls, where you can extend
Wi-Fi coverage to those rooms, where signal is poor, without having to
re-wire your house.
Simply plug this device directly into one of the LAN ports of
your MikroTik router, and add another one somewhere further in your
premises. They will link together through the power lines. You can
install up to eight PWR-LINE devices to further build your network.
Product specifications
| Details |
| Product code |
PL7411-2nD |
| 10/100 Ethernet ports |
1 |
| Antenna gain dBi for 2.4 GHz |
1.5 |
| Architecture |
MIPSBE |
| CPU |
QCA9533 |
| CPU core count |
1 |
| CPU nominal frequency |
650 MHz |
| Can be used indoors |
Yes |
| Certification |
CE/RED, EAC, ROHS |
| Dimensions |
50 x 68 x 33mm |
| License level |
4 |
| Max power consumption |
7 W |
| Operating System |
RouterOS |
| PLC chipset |
AR7420 |
| Size of RAM |
64 MB |
| Storage size |
16 MB |
| Storage type |
FLASH |
| Tested ambient temperature |
-20°C to 60°C |
| Wi-Fi generation |
Wi-Fi 4 |
| Wireless 2.4 GHz Max data rate |
300 Mbit/s |
| Wireless 2.4 GHz chip model |
QCA9533 |
| Wireless 2.4 GHz generation |
Wi-Fi 4 |
| Wireless 2.4 GHz number of chains |
2 |
| Wireless 2.4 GHz standards |
802.11b/g/n |
| Suggested price |
$42 |
|
| Wireless specifications| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|
| 1MBit/s | 22 | -96 | | 11MBit/s | 22 | -89 | | 6MBit/s | 20 | -93 | | 54MBit/s | 18 | -74 | | MCS0 | 20 | -93 | | MCS7 | 16 | -71 |
|
|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
