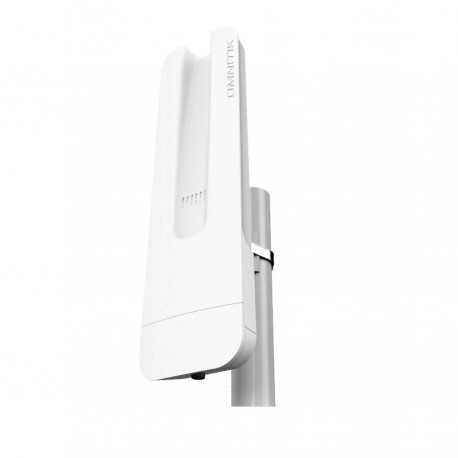

We are glad to introduce a significant upgrade to our popular OmniTIK 5GHz access points!
OmniTIK 5 ac features five Gigabit Ethernet ports and support for
802.11ac. It’s equipped with a powerful 720MHz CPU, 128MB RAM, high
power 802.11a/n/ac Dual Chain wireless (support for AC as well as
backwards compatible with regular 802.11a/n CPE) and comes with a new
design weatherproof outdoor enclosure, two integrated 7.5dBi 5GHz omni
antennas, a power supply, a PoE injector and a mounting kit.
- OmniTIK 5 ac US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
- OmniTIK 5 ac (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
Specifications
| Details |
| Product code |
RBOmniTikG-5HacD |
| Architecture |
MIPSBE |
| CPU |
QCA9557 |
| CPU core count |
1 |
| CPU nominal frequency |
720 MHz |
| Dimensions |
416 x 129 x 58 mm |
| License level |
4 |
| Operating System |
RouterOS |
| Size of RAM |
128 MB |
| Storage size |
16 MB |
| Storage type |
FLASH |
| Tested ambient temperature |
-40°C to 70°C |
| Suggested price |
$109.00 |
Powering
| Details |
| PoE in |
Passive PoE |
| PoE in input Voltage |
10-57 V |
| Number of DC inputs |
1 (PoE-IN) |
| Max power consumption |
14 W |
Wireless
| Details |
| AC speed |
AC1900 |
| Wireless 5 GHz Max data rate |
867 Mbit/s |
| Wireless 5 GHz number of chains |
2 |
| Wireless 5 GHz standards |
802.11a/n/ac |
| Antenna gain dBi for 5 GHz |
7.5 |
| Wireless 5 GHz chip model |
QCA9892 |
| Wireless 5 GHz generation |
Wi-Fi 5 |
Ethernet
| Details |
| 10/100/1000 Ethernet ports |
5 |
Peripherals
| Details |
| Number of USB ports |
1 |
| USB Power Reset |
Yes |
| USB slot type |
USB type A |
| Max USB current (A) |
1 |
Certification & Approvals
| Details |
| Certification |
CE/RED, FCC, IC, EAC, ROHS |
Wireless specifications
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|
| 6MBit/s | 31 | -96 |
| 54MBit/s | 27 | -81 |
| MCS0 | 30 | -96 |
| MCS7 | 27 | -77 |
| MCS9 | 22 | -72 |
Included parts
