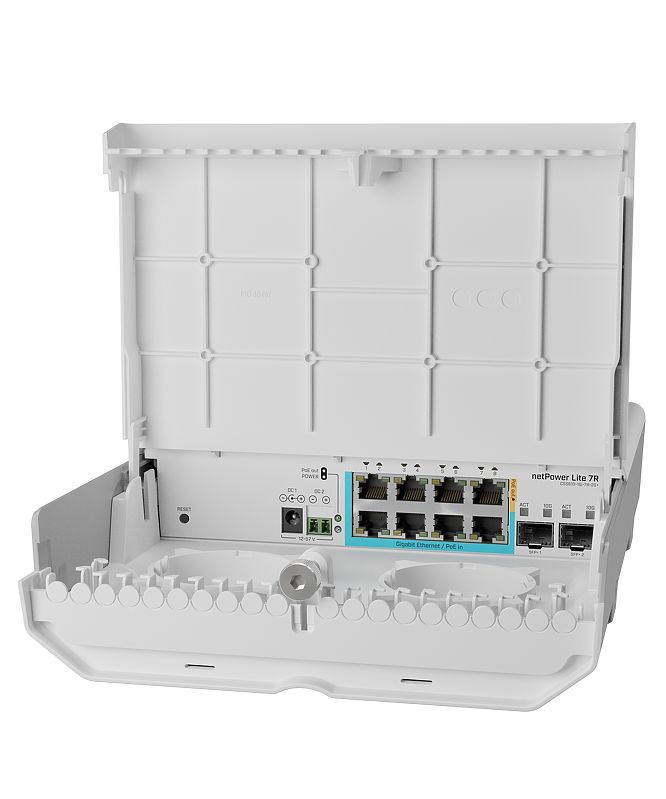

With netPower Lite 7R switch you can forget about expensive GPON base
stations and optical splitters. This switch is a part of our GPEN concept – aimed
to bring the speed and versatility of fiber networking while using the advantages
of Ethernet. It is an easy to deploy, low-cost way for any ISP to deliver the
Internet to individual apartments.
With this switch you won’t have to worry about power issues, as
there are many options. netPower Lite 7R has 7 reverse PoE ports.
Depending on your setup, netPower can draw the necessary power even from
a single client! Ethernet port 8 can power other PoE capable devices
with the same voltage as applied to the unit. There is also a DC jack
and a 2-pin terminal for alternative powering.
The outdoor enclosure allows you to install this switch in all
kinds of environments – from damp attics to elevator shafts and
different poles with hose clamps. netPower Lite 7R has a non-blocking
throughput of 28 Gbps, switching capacity of 56 Gbps and forwarding rate
of 41.7 Mpps.
Specifications
| Details |
| Product code |
CSS610-1Gi-7R-2S+OUT |
| Dimensions |
304 x 212 x 71 mm |
| Operating System |
SwitchOS |
| Storage size |
64 KB |
| Storage type |
FLASH |
| Tested ambient temperature |
-40°C to 70°C |
| Suggested price |
$129.00 |
Powering
| Details |
| PoE in |
Passive PoE |
| PoE in input Voltage |
12-57 V |
| Number of DC inputs |
3 (DC jack, 2-pin terminal, PoE-IN) |
| DC jack input Voltage |
12-57 V |
| 2-pin terminal input Voltage |
12-57 V |
| Max power consumption |
29 W |
| Max power consumption without attachments |
7 W |
| FAN count |
Passive |
PoE-out
| Details |
| PoE-out ports |
Ether8 |
| PoE out |
Passive PoE |
| Max out per port output (input < 30 V) |
600 mA |
| Max out per port output (input > 30 V) |
450 mA |
Ethernet
| Details |
| 10/100/1000 Ethernet ports |
8 |
| Number of 1G Ethernet ports with Reverse PoE (PoE-in) |
7 |
| Number of 1G Ethernet ports with PoE-out |
1 |
Fiber
Certification & Approvals
| Details |
| Certification |
CE, EAC, ROHS |
Included parts
