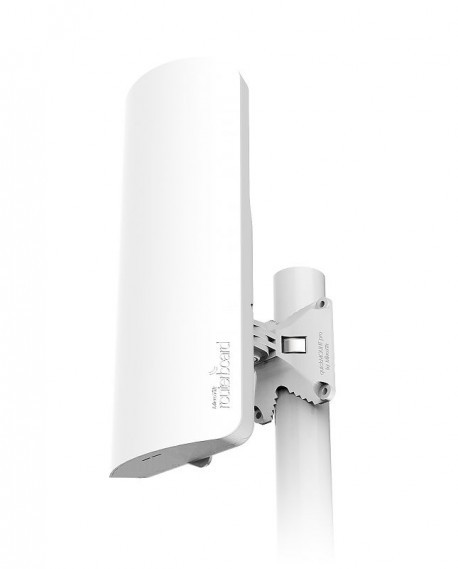

mANTBox 52 15s
Specifications
| Details | |
|---|---|
| Product code | RBD22UGS-5HPacD2HnD-15S |
| Architecture | ARM 32bit |
| CPU | IPQ-4019 |
| CPU core count | 4 |
| Dimensions | 140 x 348 x 82 mm |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 256 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -40°C to +70°C |
| Suggested price | $159.00 |
Powering
| Details | |
|---|---|
| PoE in | 802.3af/at |
| PoE in input Voltage | 12-57 V |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 12-57 V |
| FAN count | Passive |
Wireless specifications
| Details | |
|---|---|
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 12 |
| Wireless 2.4 GHz chip model | IPQ-4019 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
| Wireless 5 GHz Max data rate | 867 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 15 |
| Wireless 5 GHz chip model | IPQ-4019 |
| Wireless 5 GHz generation | Wi-Fi 5 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
Fiber
| Details | |
|---|---|
| SFP ports | 1 |
Peripherals
| Details | |
|---|---|
| Number of USB ports | 1 |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
Other
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, FCC, IC, EAC, ROHS |
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 30 | -100 |
| 11MBit/s | 30 | -94 |
| 6MBit/s | 30 | -96 |
| 54MBit/s | 27 | -80 |
| MCS0 | 30 | -96 |
| MCS7 | 26 | -75 |
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 30 | -96 |
| 54MBit/s | 27 | -80 |
| MCS0 | 30 | -96 |
| MCS7 | 26 | -75 |
| MCS9 | 23 | -72 |
