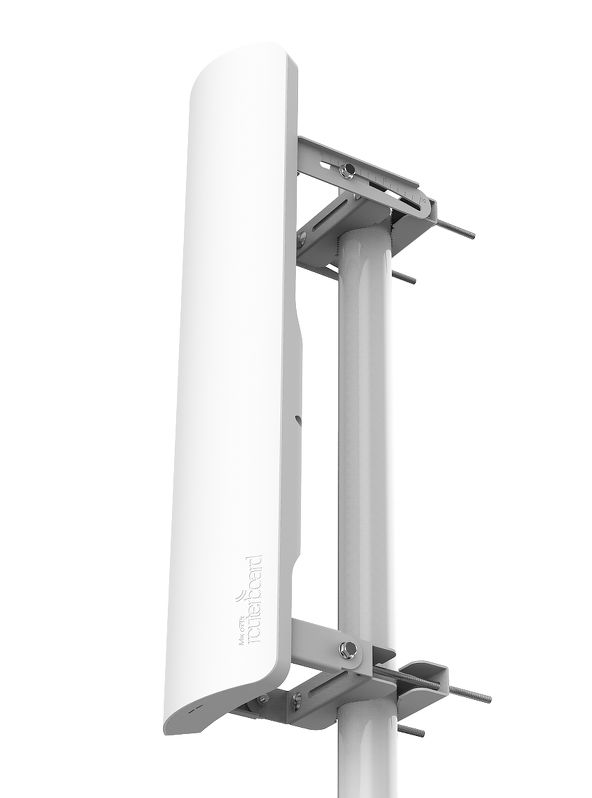

The new sector mANT antennas are the perfect companion for the BaseBox, NetBox, NetMetal or any other outdoor wireless device.
The mANT is a dual-polarization 19dBi 120 degree beamwidth
antenna with two RP-SMA connectors. It comes with metallic U bolt type
mounts.
specifications
| Details |
| Product code |
MTAS-5G-19D120 |
| Beamwidth |
120 deg (azimuth) 5 deg (elevation) |
| Connector |
two RP-SMA |
| Cross Polarization |
>30 dB |
| Diameter x Depth |
152 x 598 x 78 mm |
| Frequency Range |
5.17 - 5.825 GHz |
| Front-to-Back Ratio |
>30 dB |
| Polarization |
Vertical and horizontal |
| Port to Port Isolation |
>40 dB min |
| VSWR |
1.43 typ, 1.8 max |
| Weight |
1270 g |
| Suggested price |
$99 |
