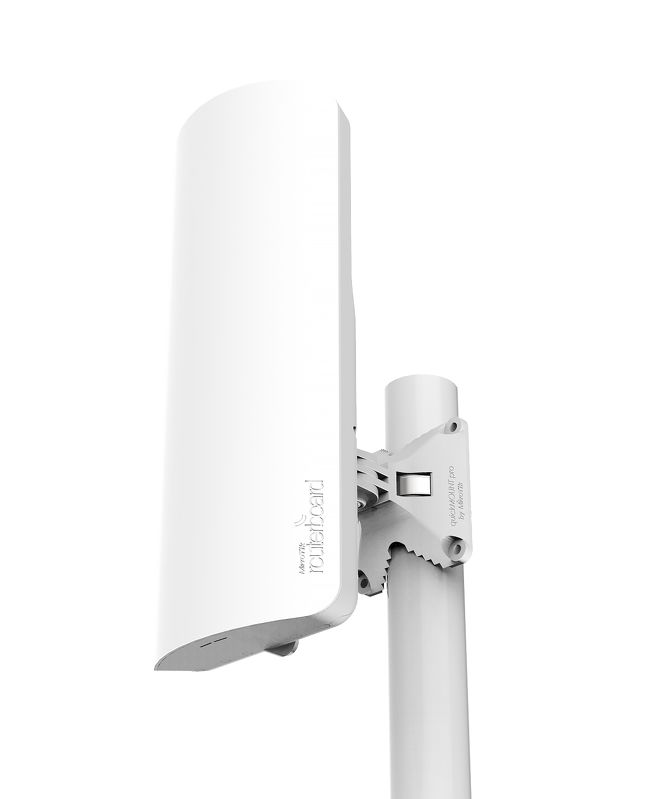

The new sector mANT antennas are the perfect companion for the BaseBox, NetBox, NetMetal or any other outdoor wireless device.
The mANT is a dual-polarization 15dBi 120 degree beamwidth
antenna with two RP-SMA connectors. It is compatible with the SXT type
mount, so you can use it with our durable and adjustable QuickMount
systems. It comes with quickMOUNT PRO.
specifications
| Details |
| Product code |
MTAS-5G-15D120 |
| Beamwidth |
120 deg (azimuth) 10 deg (elevation) |
| Connector |
two RP-SMA |
| Cross Polarization |
>30 dB |
| Diameter x Depth |
140 x 348 x 82 mm |
| Frequency Range |
5.17 - 5.825 GHz |
| Front-to-Back Ratio |
>30 dB |
| Polarization |
Vertical and horizontal |
| Port to Port Isolation |
>40 dB min |
| VSWR |
1.43 typ, 1.8 max |
| Weight |
734 g |
| Suggested price |
$49 |
