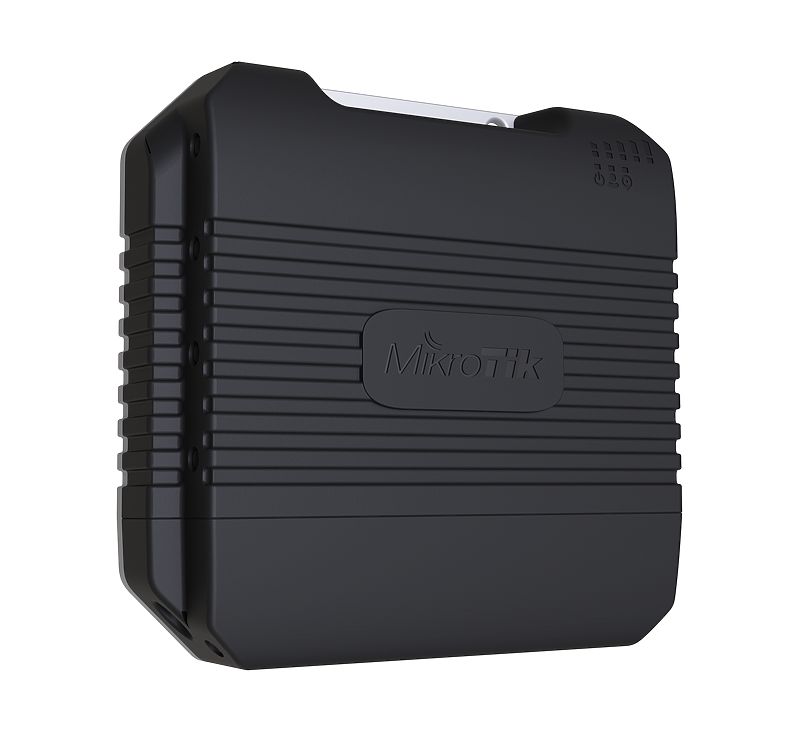

The new LtAP is a compact weatherproof wireless access point –
perfect for busy urban environment or off-the-grid outdoors networking.
It has high power 2.4 GHz 802.11b/g/n wireless and Gigabit Ethernet LAN
port for your wired devices. There are several power options – DC jack,
POE-in and automotive.
The unit comes with a two miniPCIe slots, offering many expansion
options. For example, you can install LTE modem of your choice for LTE
backup and 5GHz interface to have dual concurrent 2.4 GHz / 5GHz AP +
LTE.
LtAP has a RS232 serial port, which gives you console access for debugging, as well as full size USB for other devices.
The rugged and extremely durable case with a special wall
mounting kit will be perfect for almost any challenge: from public
transportation, food trucks or logistics to harsh winter and stormy
desert environment. LtAP can handle any temperature from -40 C° to +70
C°. It is a perfect solution for tracking vehicles in real time. We
have provided a simple tracking application example in the RouterOS
documentation to help you get started. LtAP even has 3 Mini-SIM slots
for easy roaming management. Saves your time and money worldwide!
The new LtAP is more than an access point – it is what you need it to be wherever you need it to be.
Specifications
| Details |
| Product code |
RBLtAP-2HnD |
| Architecture |
MMIPS |
| CPU |
MT7621A |
| CPU core count |
2 |
| CPU nominal frequency |
880 MHz |
| CPU Threads count |
4 |
| License level |
4 |
| Size of RAM |
128 MB |
| Storage size |
16 MB |
| Storage type |
FLASH |
| Tested ambient temperature |
-40°C to 70°C |
| Suggested price |
$129.00 |
Powering
| Details |
| PoE in |
Passive PoE |
| PoE in input Voltage |
12-30 V |
| Number of DC inputs |
3 (PoE-IN, Automotive, DC jack) |
| DC jack input Voltage |
12-30 V |
| Automotive input Voltage |
12-30 V |
| Max power consumption |
24 W |
| Max power consumption without attachments |
9 W |
Wireless
| Details |
| Wireless 2.4 GHz Max data rate |
300 Mbit/s |
| Wireless 2.4 GHz number of chains |
2 |
| Wireless 2.4 GHz standards |
802.11b/g/n |
| Antenna gain dBi for 2.4 GHz |
2.5 |
| Wireless 2.4 GHz chip model |
AR9382 |
| Wireless 2.4 GHz generation |
Wi-Fi 4 |
Ethernet
| Details |
| 10/100/1000 Ethernet ports |
1 |
Peripherals
| Details |
| Number of SIM slots |
3 Modem (Mini SIM) |
| MiniPCI-e slots |
2 |
| Serial port |
RS232 |
| Number of USB ports |
1 |
| USB Power Reset |
Yes |
| USB slot type |
USB type A |
| Max USB current (A) |
1 |
Other
| Details |
| PCB temperature monitor |
Yes |
| Voltage Monitor |
Yes |
Certification & Approvals
| Details |
| Certification |
CE/RED, FCC, IC, E-MARK, EAC, ROHS |
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|
| 1MBit/s | 25 | -100 |
| 11MBit/s | 25 | -94 |
| 6MBit/s | 26 | -96 |
| 54MBit/s | 23 | -78 |
| MCS0 | 26 | -96 |
| MCS7 | 22 | -73 |
Included parts
