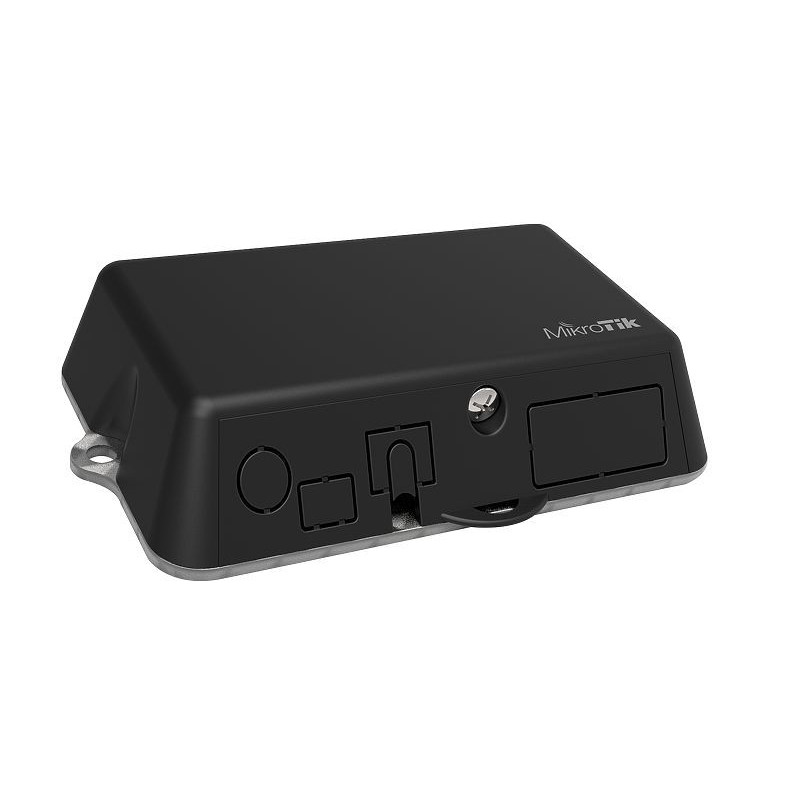

The LtAP mini is a small weatherproof wireless access point with
integrated LTE antennas (with two u.fl pigtails) and miniPCI-e slot, so
you can use your own LTE modem of your choice.
The LtAP mini also has one 10/100 Ethernet LAN port for your
wired devices. The RS232 serial port gives you console access for
debugging. The unit has several powering options: 9-30 V PoE-in by
Ethernet port, DC jack and microUSB.

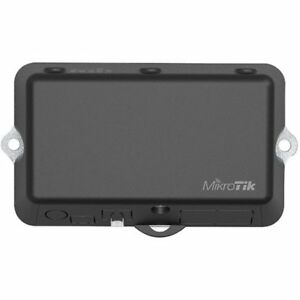

LtAP mini has a special enclosure with a wall mounting kit, two
SIM slots to alternate between cellular
providers, and integrated GPS support, making this a perfect device for
use in moving vehicles like cars, buses
or trains. Use the built in GPS module to track the location of your
vehicle in real time, we have even provided a simple
tracking application example in the RouterOS documentation, to help you
start development of your platform. External GPS antenna is available
for ordering separately (not included, product code GPSANT).
Specifications
| Details |
| Product code |
RB912R-2nD-LTm |
| Architecture |
MIPSBE |
| CPU |
QCA9531 |
| CPU core count |
1 |
| CPU nominal frequency |
650 MHz |
| Dimensions |
139 x 77 x 28,5 mm |
| License level |
4 |
| Operating System |
RouterOS |
| Size of RAM |
64 MB |
| Storage size |
16 MB |
| Storage type |
FLASH |
| Tested ambient temperature |
-40°C to 70°C |
| Suggested price |
$89.00 |
Powering
| Details |
| MicroUSB input Voltage |
5-5 V |
| PoE in |
802.3af/at |
| PoE in input Voltage |
12-57 V |
| Number of DC inputs |
3 (PoE-IN, MicroUSB, DC jack) |
| DC jack input Voltage |
8-30 V |
| Max power consumption |
9 W |
| Max power consumption without attachments |
4 W |
Wireless
| Details |
| Wireless 2.4 GHz Max data rate |
300 Mbit/s |
| Wireless 2.4 GHz number of chains |
2 |
| Wireless 2.4 GHz standards |
802.11b/g/n |
| Antenna gain dBi for 2.4 GHz |
1.5 |
| Wireless 2.4 GHz chip model |
QCA9531 |
| Wireless 2.4 GHz generation |
Wi-Fi 4 |
Ethernet
| Details |
| 10/100 Ethernet ports |
1 |
Peripherals
| Details |
| Number of SIM slots |
2 Modem (Mini SIM) |
| MiniPCI-e slots |
1 |
| Serial port |
RS232 |
| Number of USB ports |
1 |
| USB Power Reset |
Yes |
| USB slot type |
microUSB type AB |
| Max USB current (A) |
1 |
Other
Certification & Approvals
| Details |
| Certification |
CE/RED, FCC, IC, E-MARK, EAC, ROHS |
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|
| 1MBit/s | 22 | -96 |
| 11MBit/s | 22 | -89 |
| 6MBit/s | 20 | -93 |
| 54MBit/s | 18 | -74 |
| MCS0 | 20 | -93 |
| MCS7 | 16 | -71 |
