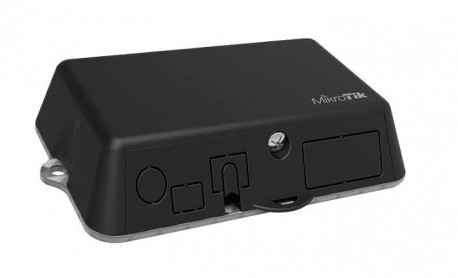

The LtAP mini LTE kit-US is a small weatherproof wireless access point with a built in cellular modem that supports
3G and 4G (LTE) connectivity on United States LTE bands 2,4,5 and 12.
Connect to the LtAP mini’s built-in 802.11b/g/n wireless and access the LTE network from your phone or any
other wireless device. The LtAP mini LTE also has one 10/100 Ethernet LAN port for your wired devices. The
RS232 serial port gives you console access for debugging.
LtAP mini has a special enclosure with a wall mounting kit, two SIM slots to alternate between cellular
providers, and integrated GPS support, making this a perfect device for use in moving vehicles like cars, buses
or trains. To use GPS an external GPS antenna is required, order separately (product code GPSANT).
The LTE card is connected to two internal antennas with u.FL connectors, so if you want, you can unplug
the connectors and add your own external LTE antenna for better coverage. The unit has several powering
options: 9-30 V PoE-in by Ethernet port, DC jack and microUSB.
Use the built in GPS module to track the location of your vehicle in real time, we have even provided a simple
tracking application example in the RouterOS documentation, to help you start development of your platform.
Specifications
| Details |
| Product code |
RB912R-2nD-LTm&R11e-LTE-US |
| Architecture |
MIPSBE |
| CPU |
QCA9531 |
| CPU core count |
1 |
| CPU nominal frequency |
650 MHz |
| Dimensions |
139 x 77 x 28,5 mm |
| License level |
4 |
| Operating System |
RouterOS |
| Size of RAM |
64 MB |
| Storage size |
16 MB |
| Storage type |
FLASH |
| Tested ambient temperature |
-40°C to 70°C |
| Suggested price |
$129.00 |
Powering
| Details |
| MicroUSB input Voltage |
5-5 V |
| PoE in |
802.3af/at |
| PoE in input Voltage |
12-57 V |
| Number of DC inputs |
3 (MicroUSB, DC jack, PoE-IN) |
| DC jack input Voltage |
8-30 V |
| Max power consumption |
9 W |
Mobile
| Details |
| 3G Category |
R8 (42.2Mbps Downlink, 5.76Mbps Uplink) / R7 (21Mbps Downlinks, 5.76Mbps Uplink) |
| LTE Category |
4 (150Mbps Downlink, 50Mbps Uplink) |
| LTE FDD bands |
2 (1900MHz) / 4 (1700MHz) / 5 (850MHz) / 12 (700MHz) |
| 3G bands |
2 (1900MHz) / 5 (850MHz) |
Wireless
| Details |
| Wireless 2.4 GHz Max data rate |
300 Mbit/s |
| Wireless 2.4 GHz number of chains |
2 |
| Wireless 2.4 GHz standards |
802.11b/g/n |
| Antenna gain dBi for 2.4 GHz |
1.5 |
| Wireless 2.4 GHz chip model |
QCA9531 |
| Wireless 2.4 GHz generation |
Wi-Fi 4 |
Ethernet
| Details |
| 10/100 Ethernet ports |
1 |
Peripherals
| Details |
| Number of SIM slots |
2 Modem (Mini SIM) |
| MiniPCI-e slots |
1 |
| Serial port |
RS232 |
| Number of USB ports |
1 |
| USB Power Reset |
Yes |
| USB slot type |
microUSB type AB |
| Max USB current (A) |
1 |
Other
Certification & Approvals
| Details |
| Certification |
CE/RED, FCC, IC, EAC, ROHS |
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|
| 1MBit/s | 22 | -96 |
| 11MBit/s | 22 | -89 |
| 6MBit/s | 20 | -93 |
| 54MBit/s | 18 | -74 |
| MCS0 | 20 | -93 |
| MCS7 | 16 | -71 |
