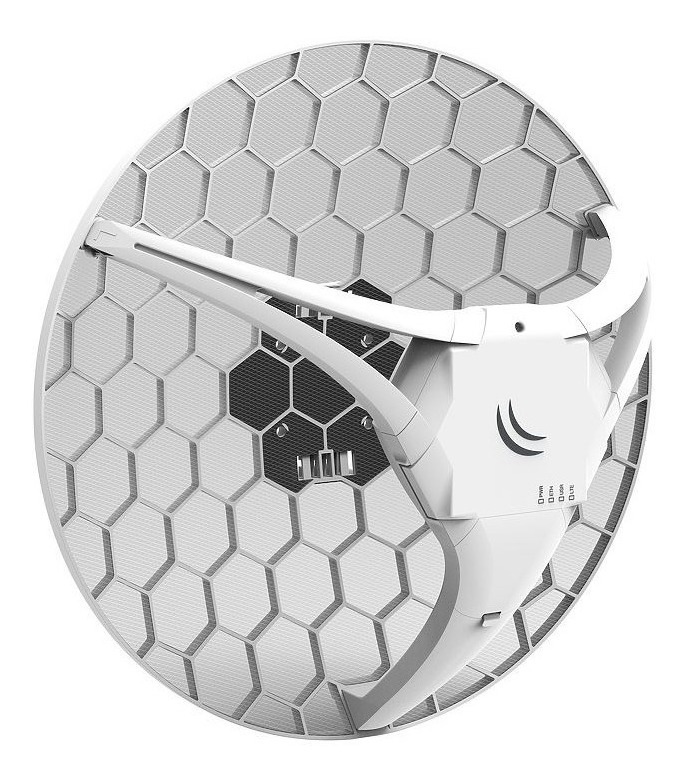

The LHG LTE kit is a device for remote locations that are within
cellular network coverage. Mount it outdoors, on a pole, mast or any
high enough structure, and connect even where cell phones can’t. Due to
it’s large sized high gain antenna, the device is capable to connect to
cell towers in extreme rural locations, giving you the ability to
provide last mile internet access where nothing else is available.
The unit is equipped with one Ethernet port, has a built in high
quality Category 4 modem for speeds of up to 150 Mbit/s downlink and 50
Mbit/s uplink.
RBLHGR&R11e-LTE-US includes LTE modem that supports LTE bands 2, 4, 5
and 12, mostly used by mobile operators in United States, Canada and
Latin America.
Specifications
| Details |
| Product code |
RBLHGR&R11e-LTE-US |
| Architecture |
MIPSBE |
| CPU |
QCA9531 |
| CPU core count |
1 |
| CPU nominal frequency |
650 MHz |
| Dimensions |
391 x 391 x 227 mm |
| License level |
3 |
| Operating System |
RouterOS |
| Size of RAM |
64 MB |
| Storage size |
16 MB |
| Storage type |
FLASH |
| Tested ambient temperature |
-40°C to 60°C |
| Suggested price |
$159.00 |
Powering
| Details |
| PoE in |
802.3af/at |
| PoE in input Voltage |
12-57 V |
| Number of DC inputs |
1 (PoE-IN) |
| Max power consumption |
6 W |
Mobile
| Details |
| 3G Category |
R7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink) |
| LTE Category |
4 (150Mbps Downlink, 50Mbps Uplink) |
| LTE FDD bands |
2 (1900MHz) / 4 (1700MHz) / 5 (850MHz) / 12 (700MHz) |
| 3G bands |
2 (1900MHz) / 5 (850MHz) |
Ethernet
| Details |
| 10/100 Ethernet ports |
1 |
Peripherals
| Details |
| Number of SIM slots |
1 Modem (Micro SIM) |
| MiniPCI-e slots |
1 |
Other
Certification & Approvals
| Details |
| Certification |
CE/RED, EAC, ROHS |
Included parts
