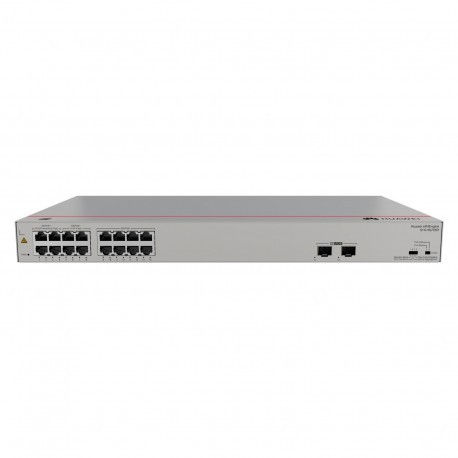

Based on the next-generation high-performance hardware and software platform, Huawei CloudEngine S110 series switches stand out with features such as intelligent stack (iStack), flexible Ethernet networking and diverse security controls. The switches are ideal for a variety of application scenarios, such as enterprise campus and gigabit access to desktops.

- Switching capacity: 20 Gbit/s

- Packet forwarding speed: 14.88 Mpps
- Power PoE: Support
- 8x 10/100/1000BASE-T ports, 1x GE Electrical Port, 1x GE SFP Port


Specifications:
- Dimensions without packaging (H x W x D) [mm(in.)]:
Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x
220.0 mm (1.72 in. x 17.4 in. x 8.66 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts
protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)
- Dimensions with packaging (H x W x D) [mm(in.)]: 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x
21.65 in. x 14.17 in.)
- Chassis height [U]: 1 U
- Weight without packaging [kg(lb)]: 1.11 (2.45)
- Weight with packaging [kg(lb)]: 1.46 (3.22)
- Typical power consumption [W]: 11 W
- Typical heat dissipation [BTU/hour]: 37.53 BTU/hour
- MTTR [hour]: 2 hour
- Redundant power supply: Not supported
