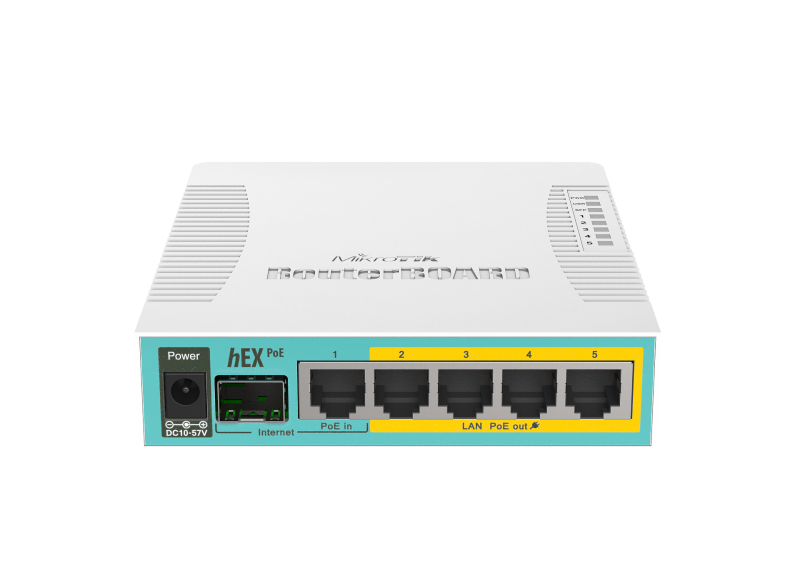

hEX PoE is a five port Gigabit Ethernet router for locations where
wireless connectivity is not required. The device has a USB 2.0 port and
a SFP port for adding optical fiber connectivity. The ports 2-5 can
power other PoE capable devices with the same voltage as applied to the
unit.
It is affordable, small and easy to use, but at the same time
comes with a very powerful 800MHz CPU, capable of all the advanced
configurations that RouterOS supports. Less power adapters and cables to
worry about! Max current is 1A per port, Ethernet ports are shielded.
It also supports passive PoE input and passive or 802.3af/at PoE output.
Ethernet ports 2-5 can power other PoE capable devices with the same
voltage as applied to the unit. Less power adapters and cables to worry
about! It can power at/af mode B (4,5+)(7,8-) compatible devices, if
48-57 input voltage is used.
Specifications
| Details |
| Product code |
RB960PGS |
| Architecture |
MIPSBE |
| CPU |
QCA9557 |
| CPU core count |
1 |
| CPU nominal frequency |
800 MHz |
| License level |
4 |
| Operating System |
RouterOS |
| Size of RAM |
128 MB |
| Storage size |
16 MB |
| Storage type |
FLASH |
| Tested ambient temperature |
-40°C to 60°C |
| Suggested price |
$79.00 |
Powering
| Details |
| PoE in |
Passive PoE |
| PoE in input Voltage |
12-57 V |
| PoE out |
802.3af/at |
| PoE-out ports |
Ether2-Ether5 |
| Number of DC inputs |
2 (DC jack, PoE-IN) |
| DC jack input Voltage |
12-57 V |
| Max out per port output (input > 30 V) |
450 mA |
| Max out per port output (input < 30 V) |
1 A |
| Max total out (A) |
2 A |
| Max power consumption |
54 W |
| Max power consumption without attachments |
6 W |
Ethernet
| Details |
| 10/100/1000 Ethernet ports |
5 |
Fiber
Peripherals
| Details |
| Number of USB ports |
1 |
| USB Power Reset |
Yes |
| USB slot type |
USB type A |
| Max USB current (A) |
1 |
Other
| Details |
| PCB temperature monitor |
Yes |
| Voltage Monitor |
Yes |
Certification & Approvals
| Details |
| Certification |
CE/RED, EAC, ROHS |
Included parts
