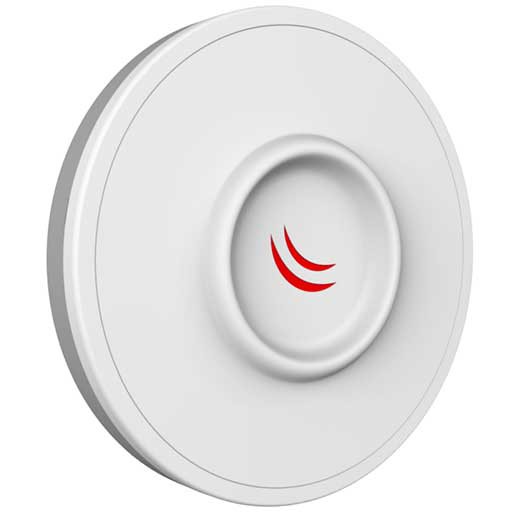

DISC Lite5 is an integrated 21dBi Dual Chain 802.11n CPE with a
600MHz CPU, 64MB RAM, 1x 10/100Mbps Ethernet port and RouterOS L3
installed. The DISC uses a backfire type antenna which allows to reach
21dBi gain in such a low cost and compact package.
The device comes complete with a power supply, PoE injector and mounting kit for a ultra low cost at $48!
The RouterOS Level3 allows to use the DISC Lite5 as CPE or Point-to-Point 5GHz links.
We have two versions available.
- DISC Lite5 US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
- DISC Lite5 (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
Specifications
| Details |
| Product code |
RBDisc-5nD |
| Architecture |
MIPSBE |
| CPU |
AR9344 |
| CPU core count |
1 |
| CPU nominal frequency |
600 MHz |
| Dimensions |
⌀ 265mm, height: 80mm |
| License level |
3 |
| Operating System |
RouterOS |
| Size of RAM |
64 MB |
| Storage size |
16 MB |
| Storage type |
FLASH |
| Tested ambient temperature |
-40°C to 70°C |
| Suggested price |
$48.00 |
Powering
| Details |
| PoE in |
Passive PoE |
| PoE in input Voltage |
10-30 V |
| Number of DC inputs |
1 (PoE-IN) |
| Max power consumption |
6 W |
Wireless
| Details |
| Wireless 5 GHz Max data rate |
300 Mbit/s |
| Wireless 5 GHz number of chains |
2 |
| Wireless 5 GHz standards |
802.11a/n |
| Antenna gain dBi for 5 GHz |
21 |
| Wireless 5 GHz chip model |
AR9344 |
| Wireless 5 GHz generation |
Wi-Fi 4 |
Ethernet
| Details |
| 10/100 Ethernet ports |
1 |
Certification & Approvals
| Details |
| Certification |
CE/RED, FCC, IC, EAC, ROHS |
Wireless specifications
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|
| 6MBit/s | 25 | -96 |
| 54MBit/s | 20 | -80 |
| MCS0 | 25 | -96 |
| MCS7 | 19 | -75 |
Included parts
