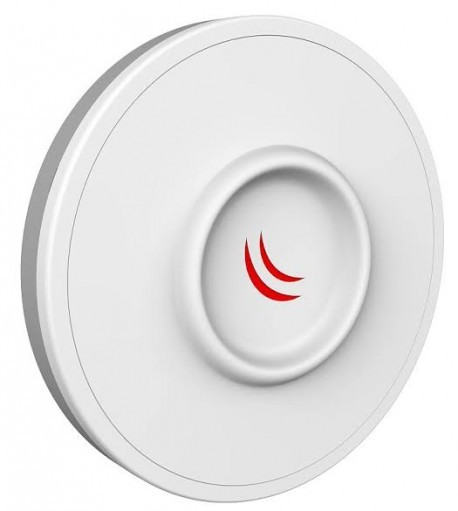

The DISC is a low cost high gain 5 GHz CPE. We have improved antenna design, added Gigabit Ethernet port and 802.11a/n/ac support to achieve even more speed on longer distances.

DISC Lite5 ac is equipped with 21 dBi dual chain antenna, 802.11a/n/ac integrated wireless, 716 MHz CPU, 256 MB RAM, 1x Gigabit Ethernet port and RouterOS Level 3 license. It comes complete with a power supply, Gigabit PoE injector and a mounting ring. The device is also compatible with our SXT mounting systems, including the quickMOUNT pro series.

The RouterOS Level 3 allows to use the DISC Lite5 ac as a CPE or for 5 GHz Point-to-Point links.

- DISC Lite5 ac-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

- DISC Lite5 (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

Specifications

Details
Product code	RBDiscG-5acD
Architecture	ARM 32bit
CPU	IPQ-4018
CPU core count	4
CPU nominal frequency	716 MHz
Dimensions	⌀ 265mm, height: 80mm
License level	3
Operating System	RouterOS
Size of RAM	256 MB
Storage size	16 MB
Storage type	FLASH
Tested ambient temperature	-40°C to 70°C
Suggested price	$58.00

Powering

Details
PoE in	Passive PoE
PoE in input Voltage	10-30 V
Number of DC inputs	1 (PoE-IN)
Max power consumption	7 W

Wireless

Details
AC speed	AC1600
Wireless 5 GHz Max data rate	867 Mbit/s
Wireless 5 GHz number of chains	2
Wireless 5 GHz standards	802.11a/n/ac
Antenna gain dBi for 5 GHz	21
Wireless 5 GHz chip model	IPQ-4018
Wireless 5 GHz generation	Wi-Fi 5
