A home network setup doesn’t have to be a compromise. This compact
and quiet switch is packing some serious server room grade features: a
pair of 10G SFP+ cages, 512 MB of RAM, 24 Gigabit Ethernet ports and a
sufficient built-in CPU that can handle basic home user needs such as
firewall, NAT and even some VPN. And it is extremely affordable – we are
keeping the price on par with the previous generation desktop switches!

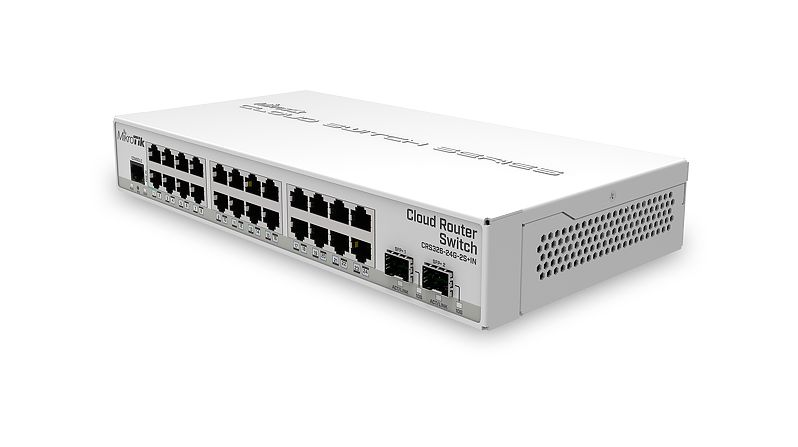

Like many other MikroTik switches, CRS326-24G-2S+IN offers the
dual boot option that allows you to use either the lightweight SwOS or
the advanced RouterOS. The compact and quiet fanless desktop case makes
this switch the perfect addition to the best home setups. And it is very
easy to transport! But make no mistake – this small switch has all the
power and features of its bigger rackmount analogue – the
CRS326-24G-2S+RM, nothing has been removed!
CRS326-24G-2S+IN provides all the basic functionality for a
managed switch, and even more: port-to- port forwarding, MAC filtering,
VLAN configuration, traffic mirroring, bandwidth limitation and even
adjust some MAC and IP header fields. SFP+ cage supports both 1.25G SFP
and 10G SFP+ modules.
Specifications
| Details |
| Product code |
CRS326-24G-2S+IN |
| Architecture |
ARM 32bit |
| CPU |
98DX3236 |
| CPU core count |
1 |
| CPU nominal frequency |
800 MHz |
| Dimensions |
285 x 144 x 44 mm |
| License level |
5 |
| Operating System |
RouterOS / SwitchOS |
| Size of RAM |
512 MB |
| Storage size |
16 MB |
| Storage type |
FLASH |
| Tested ambient temperature |
-40°C to 60°C |
| Suggested price |
$189.00 |
Powering
| Details |
| PoE in |
Passive PoE |
| PoE in input Voltage |
10-30 V |
| Number of DC inputs |
2 (PoE-IN, DC jack) |
| DC jack input Voltage |
10-30 V |
| Max power consumption |
21 W |
Ethernet
| Details |
| 10/100/1000 Ethernet ports |
24 |
Fiber
Peripherals
Certification & Approvals
| Details |
Certification |
CE/RED, EAC, ROHS |
