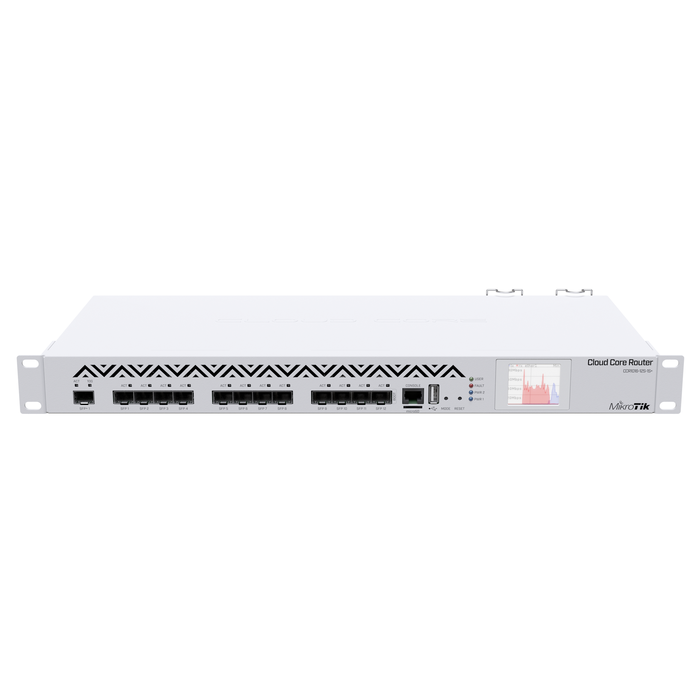

CCR1016 is an industrial grade router with a cutting edge 16 core
Tilera CPU. If you need many millions of packets per second - Cloud Core
Router is your best choice.
This model has twelve SFP ports and one SFP+ port for 10G
connectivity. It is available in a 1U rackmount case and also has a
serial console port, a touchscreen LCD and a USB port.
The CCR1016-12S-1S+ comes with redundant power supplies and one RJ45 SFP 10/100/1000M copper module.
Specifications
| Details |
| Product code |
CCR1016-12S-1S+ |
| Architecture |
TILE |
| CPU |
TLR4-01680 |
| CPU core count |
16 |
| CPU nominal frequency |
1.2 GHz |
| License level |
6 |
| Operating System |
RouterOS |
| Size of RAM |
2 GB |
| Storage size |
128 MB |
| Storage type |
NAND |
| Tested ambient temperature |
-20°C to 60°C |
| Suggested price |
$745.00 |
Powering
| Details |
| Number of AC inputs |
2 |
| AC input range |
100-240 |
| Max power consumption |
47.5 W |
| Max power consumption without attachments |
34 W |
Fiber
| Details |
| SFP DDMI |
Yes |
| SFP ports |
12 |
| SFP+ ports |
1 |
Peripherals
| Details |
| Memory card type |
microSD |
| Memory Cards |
1 |
| Serial port |
RJ45 |
| Number of USB ports |
1 |
| USB Power Reset |
Yes |
| USB slot type |
USB type A |
| Max USB current (A) |
1 |
Other
| Details |
| CPU temperature monitor |
Yes |
| PCB temperature monitor |
Yes |
| Mode button |
Yes |
Certification & Approvals
| Details |
| Certification |
CE/RED, EAC, ROHS |
Included parts
